A VRLA battery (valve-regulated lead-acid battery), more commonly known as a sealed lead acid battery or maintenance free battery, is a type of lead-acid rechargeable battery. Due to their construction, they can be mounted in any orientation, and do not require constant maintenance.

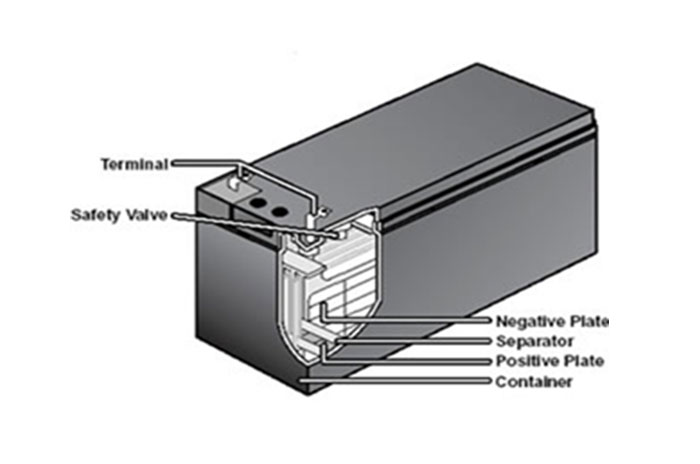

STALLION Batteries have an absorbed glass mat design, or AGM for short, the spacer between the cells is replaced by a glass fibre ( mat ) soaked in electrolyte.

There is only enough electrolyte in the mat to keep it wet, and if the battery is punctured the electrolyte will not flow out of the mat.
Likewise, the mat greatly reduces evaporation, to the point that the batteries do not require periodic refilling of the water.
This combination of features allows the battery to be completely sealed, which makes them useful in portable devices.

DIMENSIONS

Description
Length (mm)
Width (mm)
Height (mm)
T Height (mm)
A Weight (Kg)
6V - 1.2 AH
97
24
52
57
0.28
6V - 4 AH
70
47
100
106
0.75
6V - 4.5 AH
70
47
100
106
0.75
6V - 7 AH
151
34
94
100
1
6V - 12 AH
151
50
94
100
1.75
12V - 1.3 AH
97
43
51
57
0.5
12V - 2.3 AH
178
35
63
67
0.81
12V - 4 AH
90
70
101
107
1.3
12V - 7.2 AH
151
65
94
100
2
12V - 8.2 AH
151
65
94
100
2.25
12V - 9 AH
151
65
94
100
2.5
12 V - 12 AH
151
98
96
101
3.4
12 V - 17 AH
181
77
166
166
4.5
12 V - 24 AH
166
125
175
175
7
12 V - 38 AH
198
166
170
170
12

Applications

UPS(uninterruptible power supply)

Emergency Power Supply

Safety and Security systems

Solar Power systems

Lighting products

Portable Power Supplies

Parking Locks

Electronic Scales

Traffic Sign Light

Features

Low self discharge

ABS case (can be made with flame retardant)

Maintenance-free operation

Sealed construction and leak proof

Safety valve regulated system

Operating in any position

Deep discharge recovery

Electronic ScalesWide operating temperature range

Charging

Constant Voltage Cycling : 14.4 - 15 V

Constant Voltage Floating : 13.5 - 13.8 V

Self Discharge ( under normal storage temperature )

Capacity after 3 months storage : 90%

Capacity after 6 months storage : 80%

Capacity after 12 months storage : 60%
